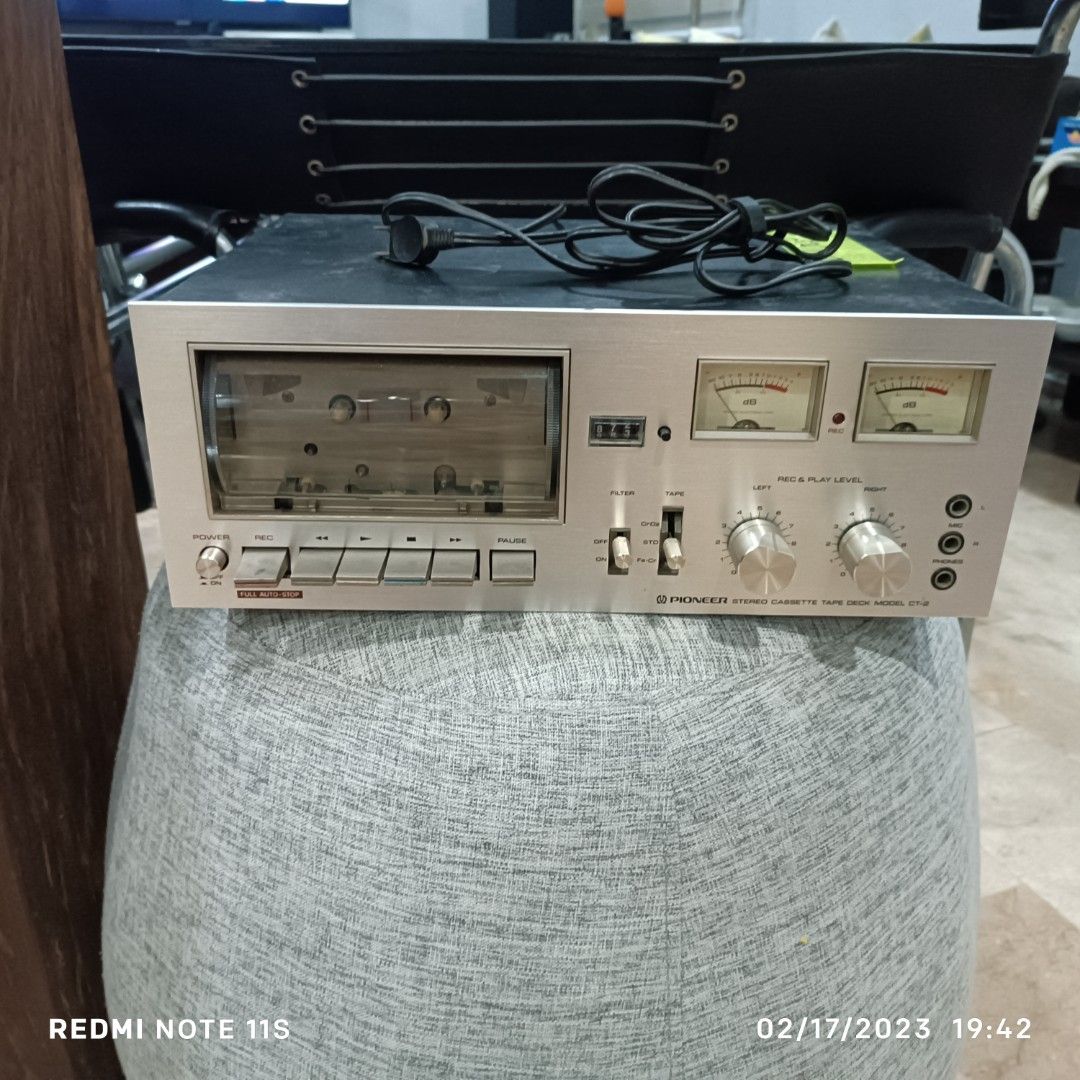

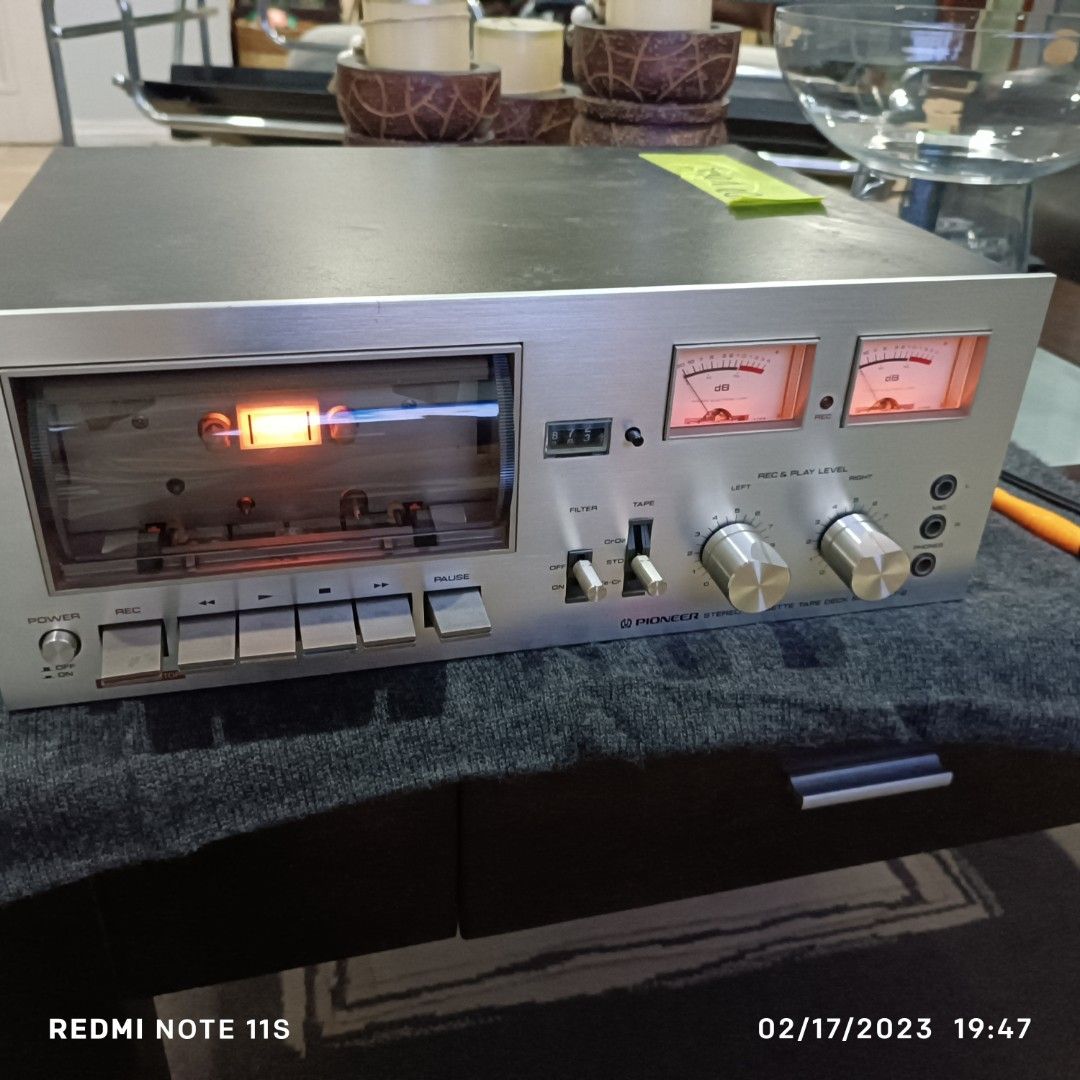

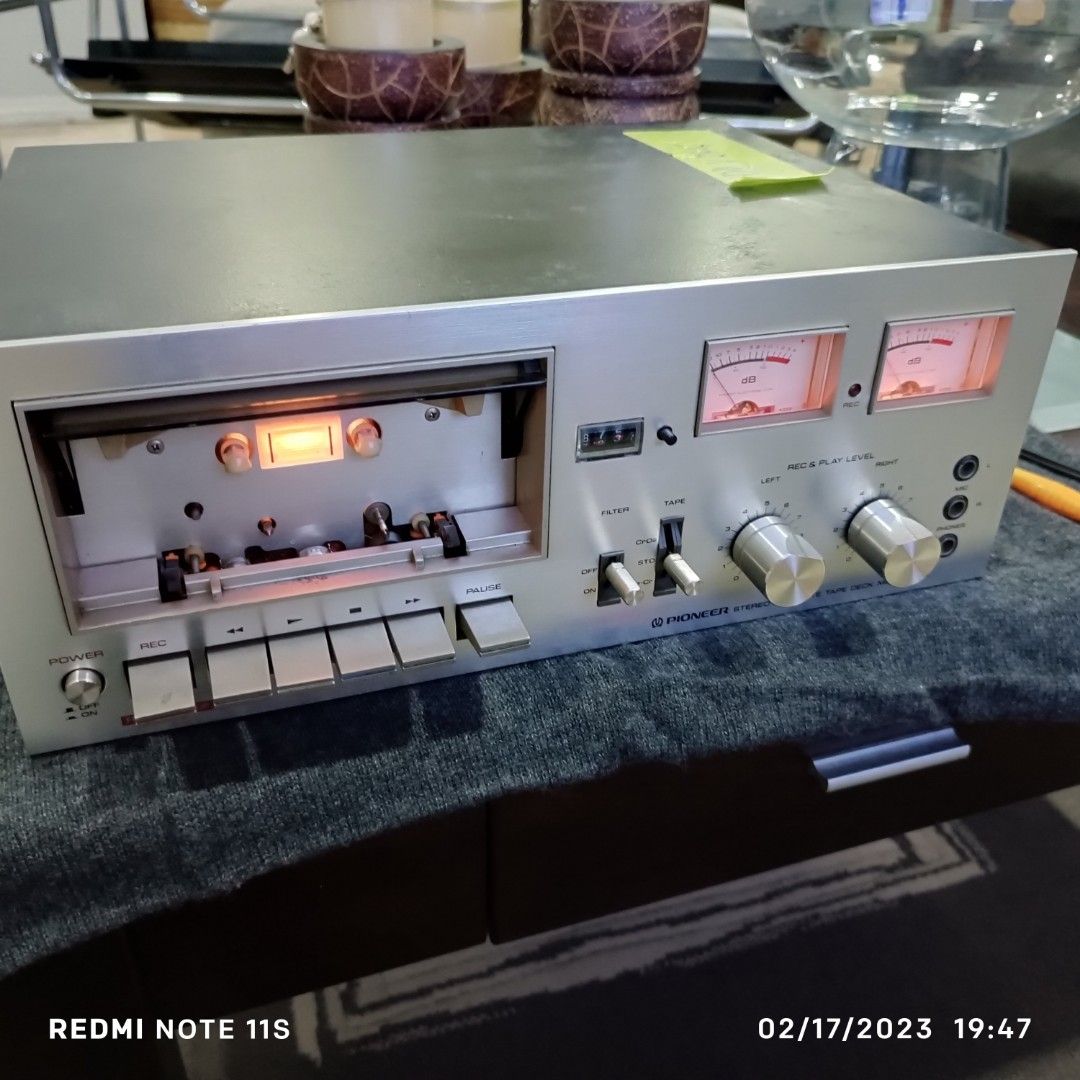

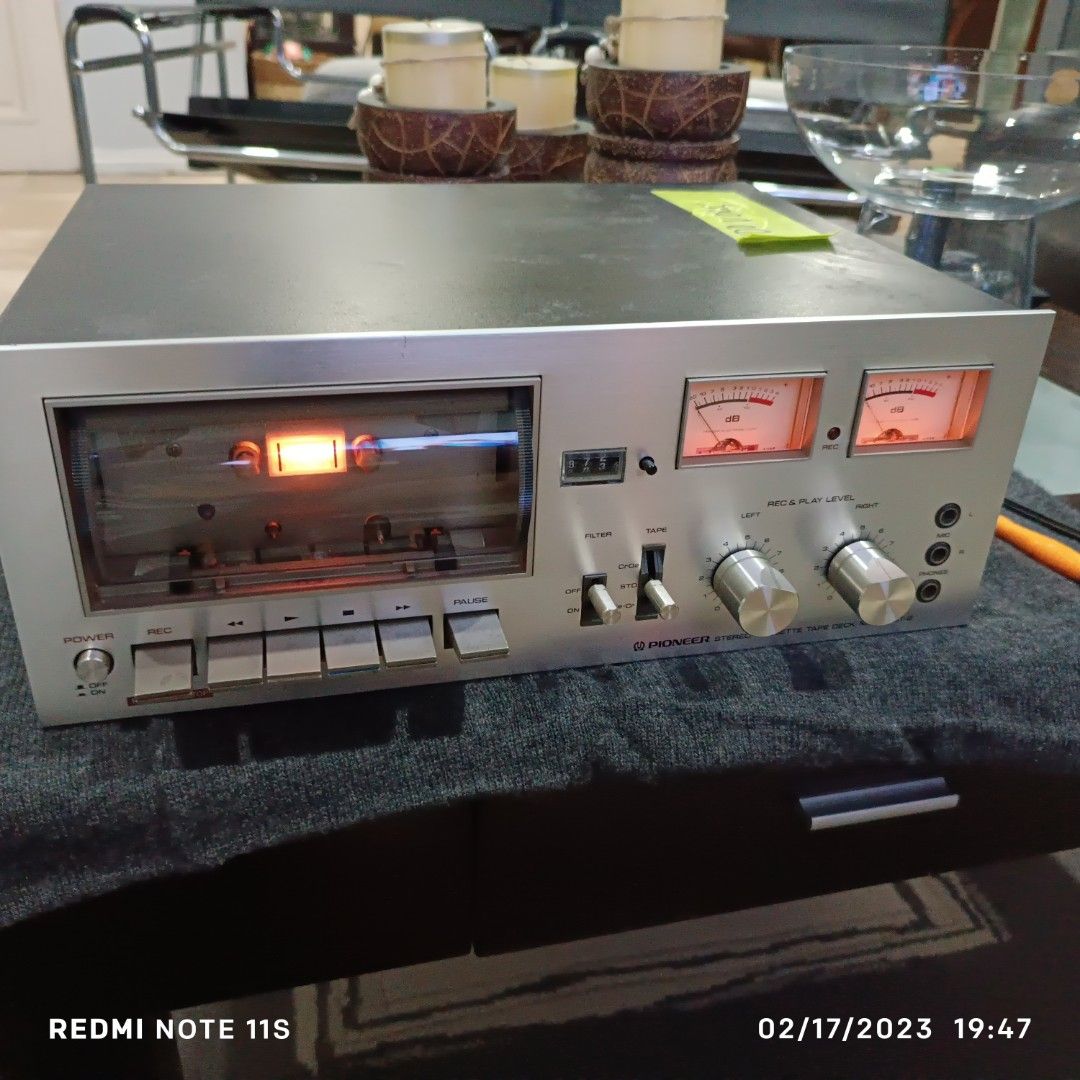

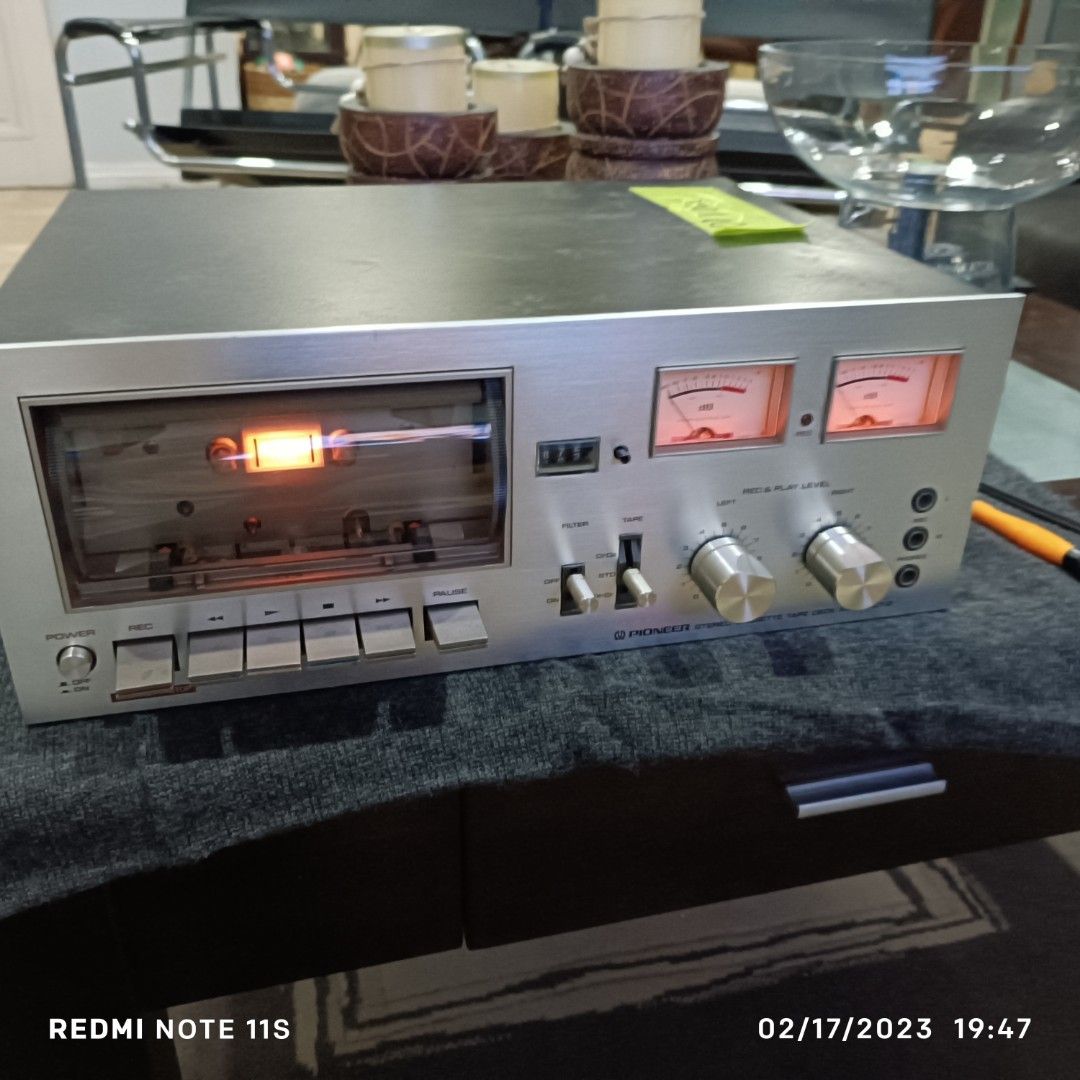

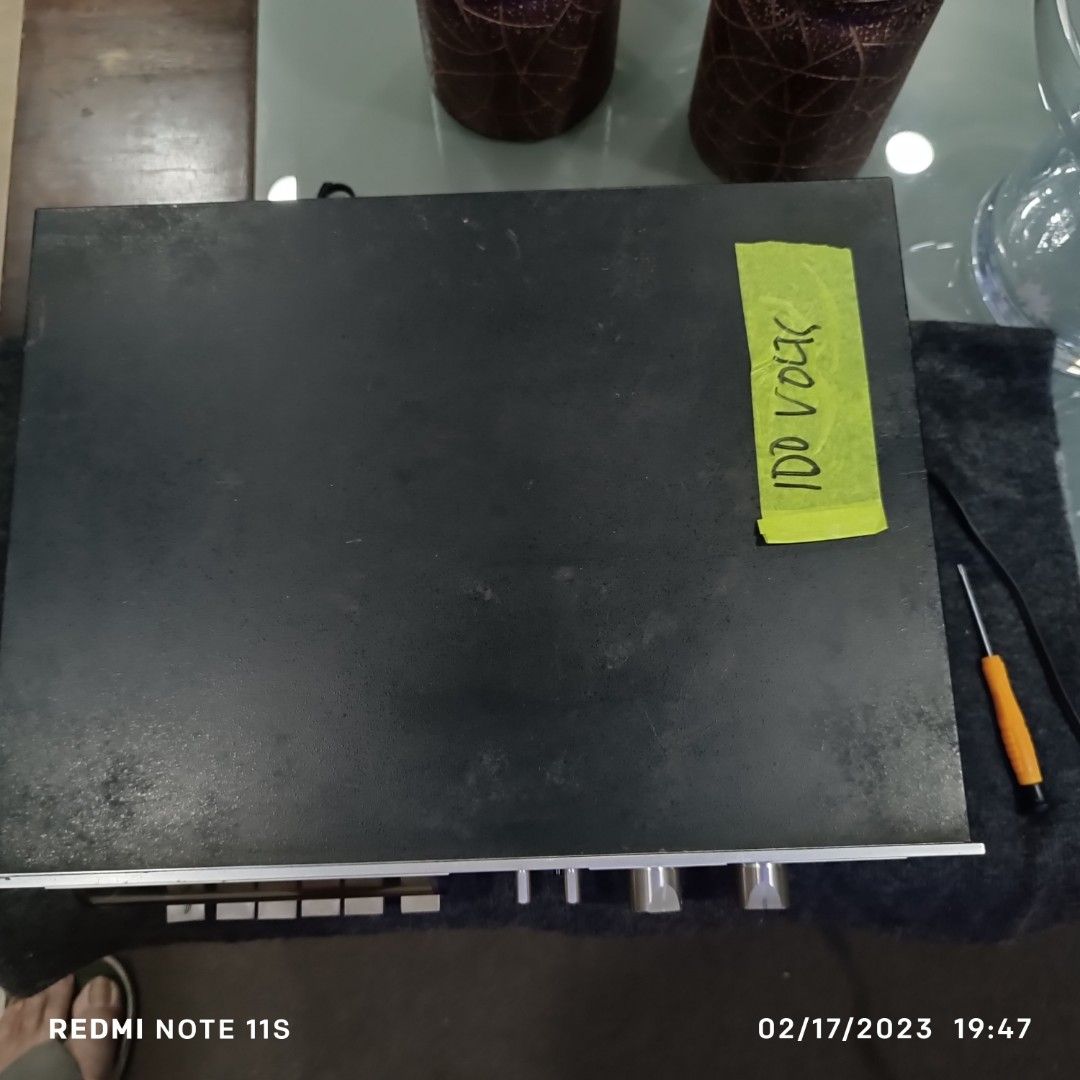

VINTAGE PIONEER CT 2 CASSETTE DECK ko (1976) RESERVED

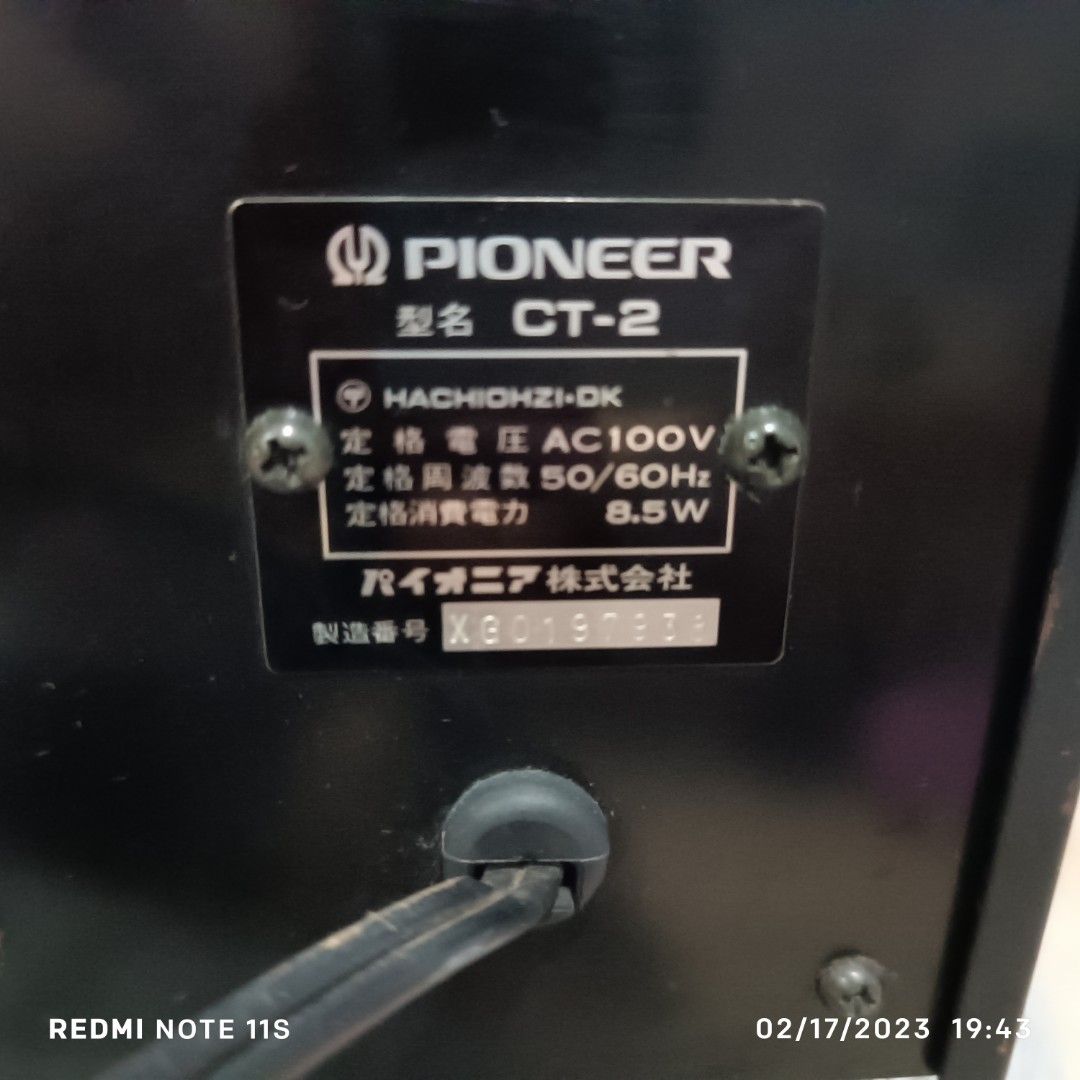

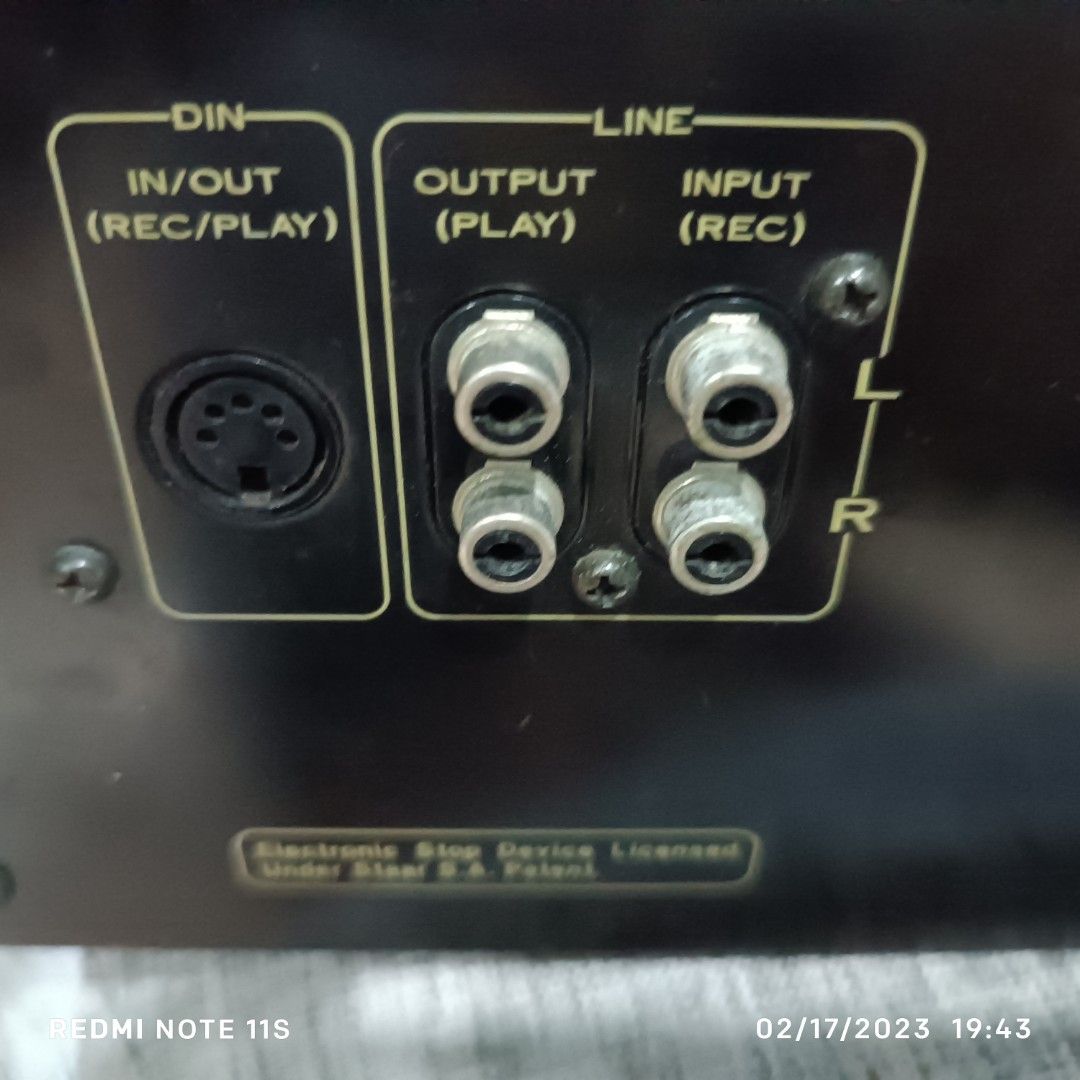

Hard to find vintage Pioneer CT 2 CASSETTE Tape Deck ALL buttons working 100 Volts 50/60 Hz 8.5 watts 380x150x316 mm. 6.9 kgs Cosmetic: 9/10 PIONEER CT 2 TAPE DECK Vintage : Released Date 1976 TypeStereo cassette deckHeadsRe-recording : 1 hard permalloy head Erase : 1 ferrite headMotorOne electronically controlled DC motor with built-in generatorQuick winding speed85 seconds or less (at C-60)Uneven Rotation (WRMS)Not more than 0.08%Frequency characteristicGeneral, LH Tape : 30 Hz ~ 14 kHz, 40 Hz ~ 13 kHz ± 3 dB Chrome Tape : 30 Hz ~ 16 kHz, 40 Hz ~ 15 kHz ± 3 dB Ferrichrome Tape : 30 Hz ~ 16 kHz, 40 Hz ~ 15 kHz ± 3 dBS/NGeneral / LH Tape : 52 dB or moreDistortion factorNot more than 1.7%Input Sensitivity / Maximum Allowable Input / ImpedanceMicrophone : 0.3mV/63mV/24k Ω (microphone impedance 250 Ω ~ 30k Ω) Line : 63mV/12.6V/330k Ω DIN : 10mV/2V/2.2k ΩReference output level / maximum output level / ImpedanceLine : 450mV/710mV/50k Ω DIN : 450mV/710mV/5k Ω Headphones : 60mV/95mV/8 ΩSemiconductor usedTransistor : 16 Nos. (For Motor Electronic Control : 3 Nos.) IC : 2 Nos. Diode : 11 Pieces (For Motor Electronic Control : 1 Piece) Zener diode : 1 unit Light emitting diode : 1Pwer100 VAC, 50Hz/60HzPower consumption8.5WExternal dimensionsWidth 380x Height 150x Depth 316 mmWeight6.9kgAttachment2 stereo connection code One Head Cleaning Kit
