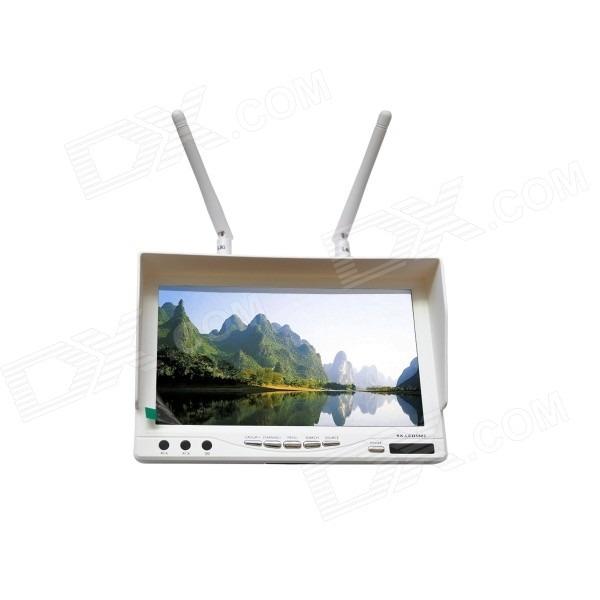

BOSCAM rx-lcd5802 - FPV Drone Racing Portable LCDMonitor

Boscam RX-LCD5802 5.8GHz LCD Diversity Receiver 7 Inch Monitor Notice: Specification: Built-in 5.8Ghz Dual diversity receiver automatically for best reception Built-in 2CH 5.8Ghz AV output and 1CH AV input Work status OSD display : RSSI indication ; Battery indicator;Channel indication A key to automatic signal search Support Chinese and English menu Screen size:7" Screen type:TFT LCD Screen/long life, LED backlight Resolution: 800*480 Brightness: 450cd/m2 View Angle:140/120degree (Horizontal/Vertical) Size:180mm x 120mm x 50mm( Note: Sunshield height:28mm) Working Voltage: DC 7~16V Power Consumption: 650 mA @12V Battery charging current : 850mA @12V ( max ) Working temperature: -10℃~+ 65 ℃ Connectors:SMA female(outer hole) Antennas Connectors:SMA male (inner needle) Features: Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching Dual buffered AV outputs Can receive 2 different channels at the same time Not affect by 2.4GHz R/C Radios AV Receiver with Diversity inputs Small, light weight, durable 4 Bands and total 32 Channels Built-in battery , easy to carry and outdoor use A key to automatic signal search,Simple operation Work status OSD display:Always be aware of the device working condition. Band and Channel selection CH CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 GROUP A 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ *Some images are for reference only
